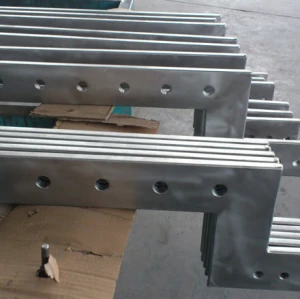

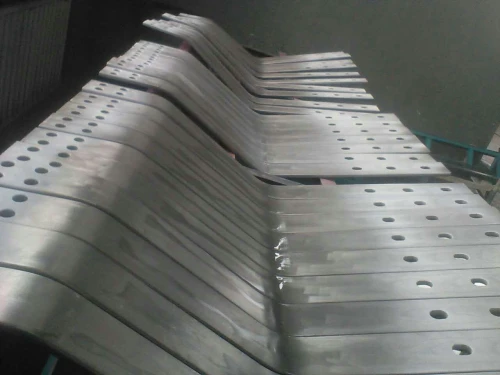

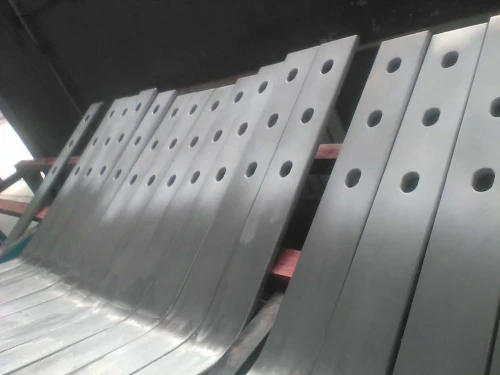

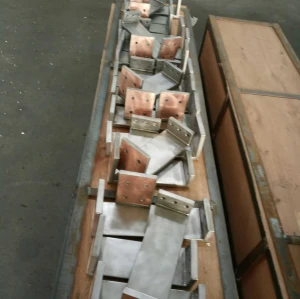

Titanium clad Copper processing formed parts
Titanium clad Copper processing formed parts
Titanium clad Copper processing formed parts
Titanium clad Copper processing formed parts
Titanium clad Copper processing formed parts
Titanium clad Copper processing formed parts
Model
82.4mm*20.4mm*1570.5mm*drawing

Item specifics

Ti:Gr2
Cu:C11000

Review

Description

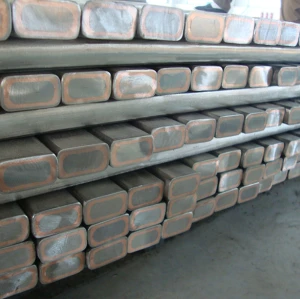

Titanium clad Copper busbar
Ti:Gr2      Cu:C11000
Size:82.4mm(wideth)*12.4mm(thickness)*drawing (Ti thickness:1.5mm)

TitaniumCopper Composite Bar Production Process

  Our company production of Titanium Copper Composite Barimplement national standards GB/T12769-2003, production technology extrusion andhot rolling technology process.

Extrusion process: put the base material copper bar and thecomposite material titanium tube set togetherafter extrusionprocess, make the copper bar and the titanium tube preliminary compositetogetherformation of titanium copper billet material.

 Hot rolling process technology: put the titanium copper billet materialinto the hole pattern rolling mill, hot rolled into required size, make thetitanium and copper reach the certain composite strength. Then straightening, surfacetreatment processes such as, eventually become a finished product.

 Detection means for titanium copper composite bar: Ultrasonic flawdetection, inspection titanium copper composite bar joint.

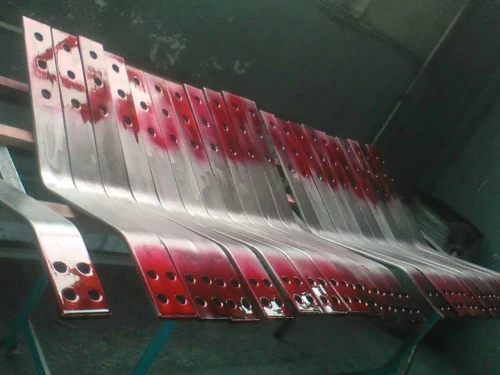

Penetration testing, inspection titaniumcopper composite bar

welding conditions.
