Titanium clad Copper busbar
Titanium clad Copper busbar
Titanium clad Copper busbar
Titanium clad Copper busbar
Titanium clad Copper busbar
Titanium clad Copper busbar

Item specifics

Strong corrision resistance
High electrical conductivity
Export woodencase packing
Long using life

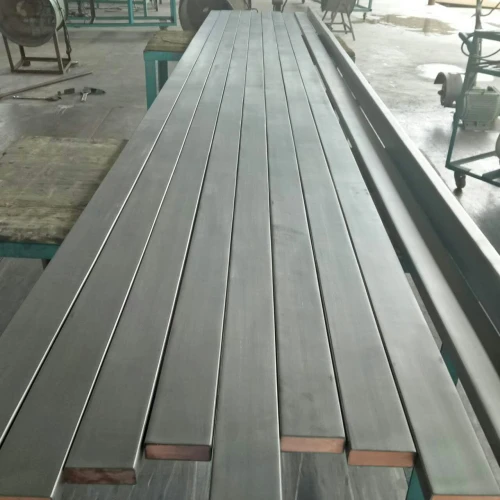

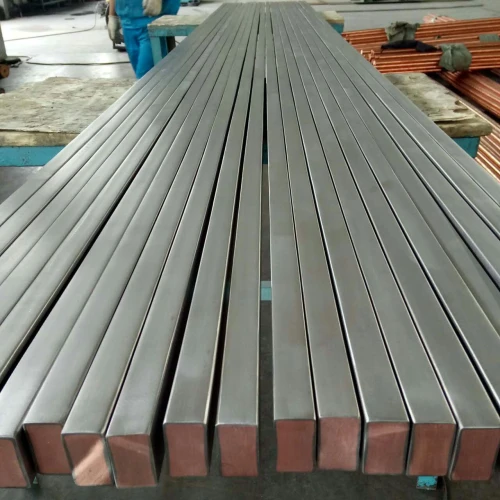

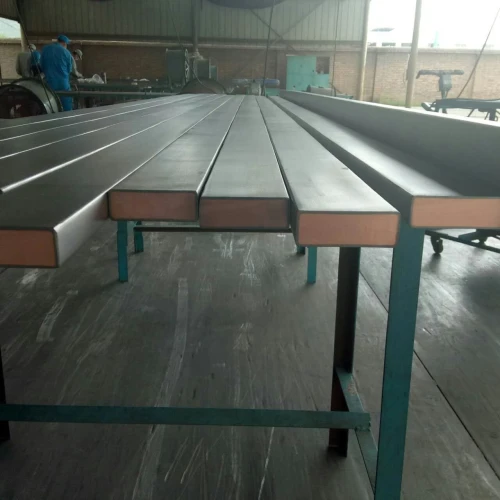

Titanium clad Copper busbar
Ti(Gr2)   Cu(C11000)
Ti:ASTMB338   Cu:ASTMB187
66mm*24mm*3000mm(Ti thickness:2.0mm)

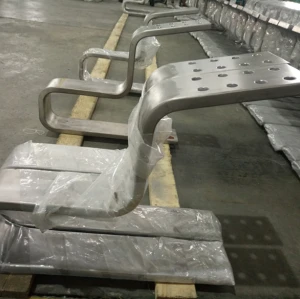

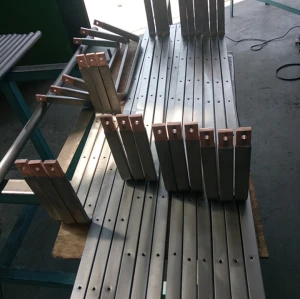

Through bending, welding, punching processing, such as do in the liquid anode used in electroplating bath.

Baoji steel titanium industrylimited liability company leading products for metal composite materials. Include titanium clad copper,zirconium clad copper , stainless steel clad copper, three layers metalcomposite and composite silk material series products etc. Its are main thefeature is in copper, aluminum etc conductive metal bar, platoon, generatrixand silk material outside compound titanium, zirconium, nickel, stainless steelcorrosion metal layer. Not only ensure materialsuperior conductivity, and with a strong surface corrosion resistance. Widely used in strong corrosioncondition of conductive body, such as electrochemical, electroplating,electrolysis, hydrometallurgy, PCB, electric chemical industry, watertreatment, ocean engineering, etc.
Our company since 2001 start manufacture metalcomposite material series product, after 15 years of hard work development, wehave set up a perfect specialized metal composite material production line.
Reference standard GB/T 12769-2003
Specification variety range:
Substratum  material: copper T1,T2, TU1 TU2, aluminum AL etc.
 cladding material: titanium Ti,zirconium Zr, stainless steel (304, 316L), Nickel Ni, TantalumTan, etc.
cladding layer thickness: conventional 1.0 ~2.5 mm
Main cross-section shape and size range (mm) :
Rectangular width (20 ~ 150) x thickness (6 ~30)
Circle Φ (8 ~ 50)
Square model revised (10 ~ 30)
Silk material Φ (2.0 ~ 8.0)
Another maybe based on customer demand produce the other material and productspecifications.
