Titanium clad Copper welding formed drilling holes parts
Titanium  clad Copper welding formed drilling holes parts
Titanium  clad Copper welding formed drilling holes parts
Titanium  clad Copper welding formed drilling holes parts
Titanium  clad Copper welding formed drilling holes parts
Titanium  clad Copper welding formed drilling holes parts
Model
80*12*1770mm (Ti thickness:1.0mm)

Item specifics

Ti:Gr2
Cu:C11000
Ultrasonic Testing
Penetrant Inspection
argon arc welding
copper brazing

Review

Description

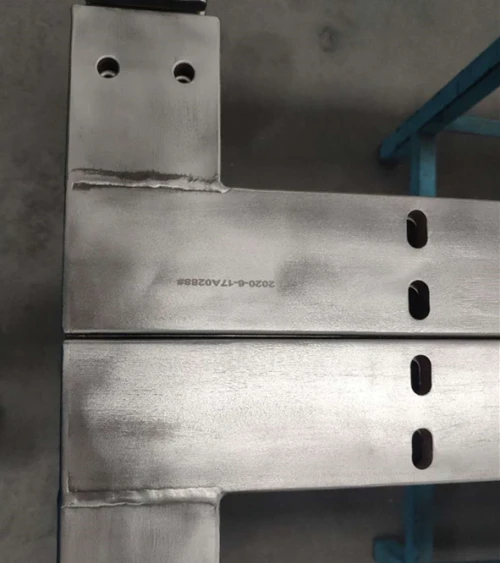

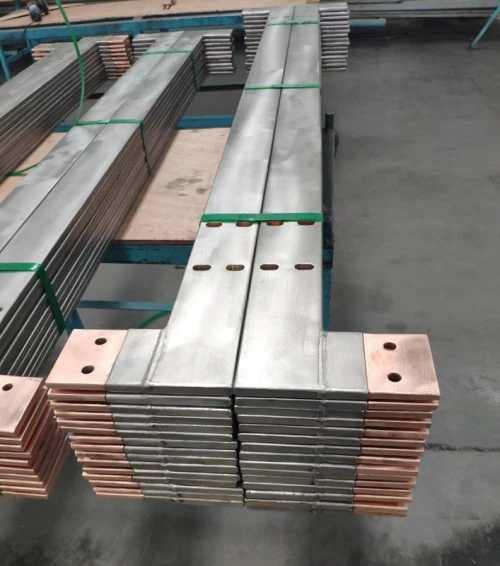

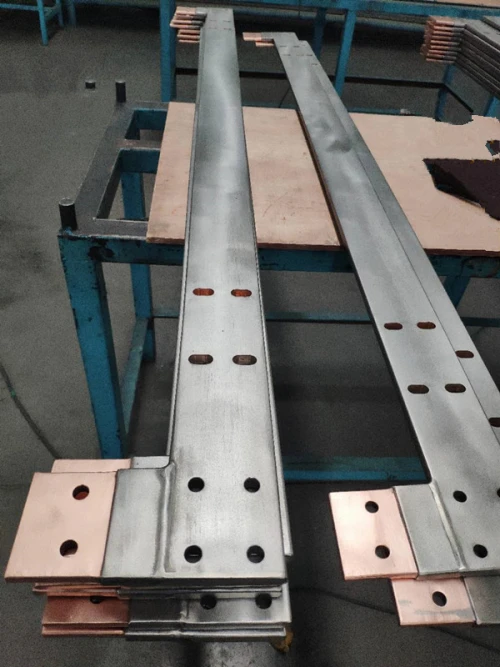

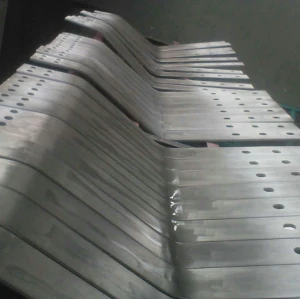

Titanium Copper clad welding punching formed parts

Ti: Gr2   Cu: C11000

102*18*1764mm (Ti thickness:1.5mm)

Referance standard:GB/T 12769-2003

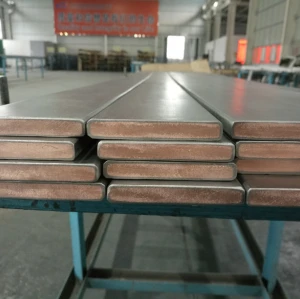

Baoji steel titanium industry limited liability company leadingproducts for metal composite materials. Include titanium clad copper, zirconium clad copper , stainlesssteel clad copper, three layers metal composite and composite silk materialseries products etc. Its are main the feature is in copper, aluminum etcconductive metal bar, platoon, generatrix and silk material outside compoundtitanium, zirconium, nickel, stainless steel corrosion metal layer. Not only ensure material superior conductivity, and with a strongsurface corrosion resistance. Widely used in strong corrosioncondition of conductive body, such as electrochemical, electroplating,electrolysis, hydrometallurgy, PCB, electric chemical industry, watertreatment, ocean engineering, etc.
Our company since 2001 start manufacture metalcomposite material series product, after 15 years of hard work development, wehave set up a perfect specialized metal composite material production line.
Reference standard GB/T 12769-2003
Specification variety range:
Substratum  material: copper T1,T2, TU1 TU2, aluminum AL etc.
 cladding material: titanium Ti,zirconium Zr, stainless steel (304, 316L), Nickel Ni, TantalumTan, etc.
cladding layer thickness: conventional 1.0 ~2.5 mm
Main cross-section shape and size range (mm) :
Rectangular width (20 ~ 150) x thickness (6 ~30)
Circle Φ (8 ~ 50)
Square model revised (10 ~ 30)
Silk material Φ (2.0 ~ 8.0)
Another may be based on customer demand producethe other material and product specifications.
