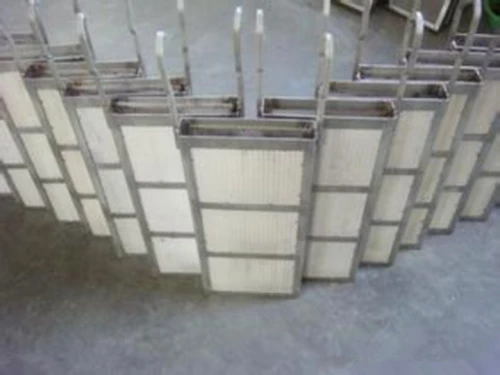

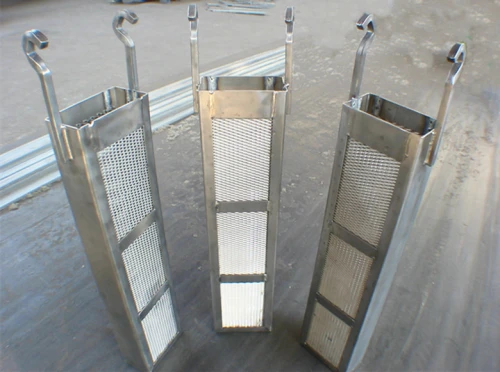

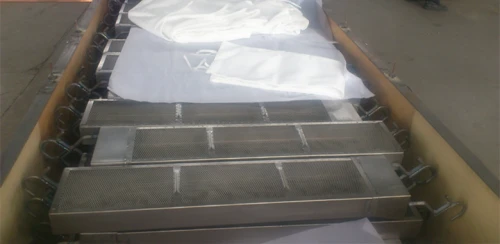

Titanium basket consists of column titaniumor titanium, titanium silk woven mesh or titanium net or titanium plateprocessing welding and become, the characteristics of titanium in filterindustry the most practical, the titanium acid alkali resistance, resistance tohigh temperature and low temperature resistant, light weight, in particular,the performance of practical, such as filtering corrosive liquids, sea water,chlorine water, etc.


Titanium mesh accordingto the production process is divided into: titanium silk woven mesh andtitanium plate mesh (titanium foil net).
A titanium, titaniumwire mesh grid by silk thread woven for cross, square hole mesh.


Material: TA1, TA2
Mesh: 5-80 mesh.Maximum80 mesh, general is 40, 60, 80 mesh.
Wire diameter: 0.05 3 mm
Net width: 1 m;30 meterslong:
The second network,titanium plate, titanium foil mesh: by the titanium plate, titanium foilstamping tensile
Thickness: 0.04 -- 3 mm.
X0.6 mesh: 0.3 mm, 0.5X1 mm, 0.6 x 0.8 mm, 0.8 X1.2 mm, 0.8 x 1 mm, 1 x2 mm, 1.25 X2.5 mm, 1.5 x 3mm, 2 x2. 5 mm, X4 2.5 mm, 2, 3, 4 x6 mm x 4 mm by 8 mm, 5, 6 x10 mm x 12 mm, 7x 14 mm, 8, 10 x20 x16 mm mm specification.

Hole pattern: the diamond, diamond, hexagonspecial mesh can be customized as required.
